Sure glad ATF is back! Missed it! With that said, for those of you who have kept up i am getting into reassembly of the cub.

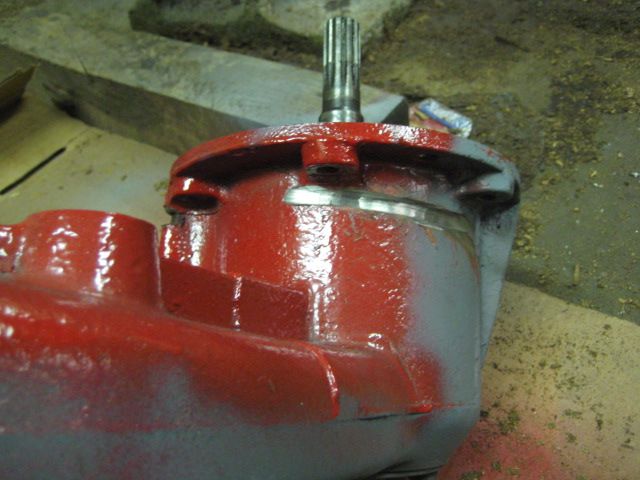

Just refresh everyone's memory i had found a major crack in one of the final drives! You can see how long it was from the grind i had to do!


Got that fixed over the weekend, i discovered it to be a stress crack!

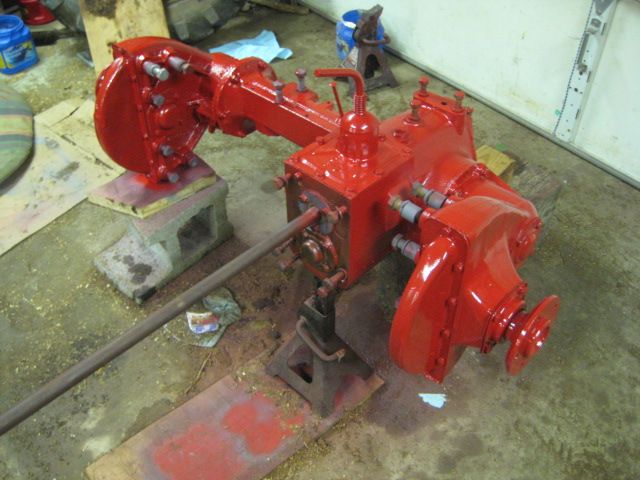

Its gettin there!

See less See more
1 - 20 of 55 Posts
They'll crack there when the bolts work loose and it allows movement between the final and transmission case.
Looking forward to seeing it all back together.
I don't doubt that would cause a crack, but this one was tight before i removed it. What i discovered is the top 2 bolts are binding the housing at this location! Loosening only the back top bolt a 12 thousands gap appeared. This tells me one or the other mating surface is not totally flat. My remedy for this was to loosen the front top bolt and check the gap at each bolt location. I ended up using a 12 thousands shim at the front bolt, and a 14 thousands shim at the back, this should take up the low spot and relieve the stress at that point!
It certainly was a major with all the grinding you had to do.
Do you think that welding it there drew the metal back, which left you with the gap?
Looking good with the re assembly so far...Red paint sure stands out.
2

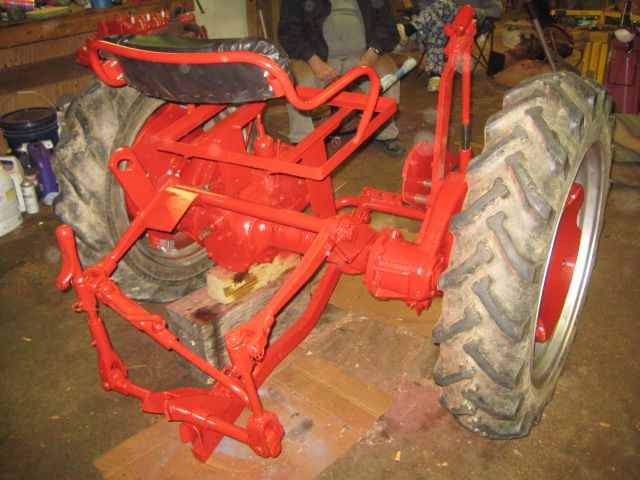

What a difference 2 days make!


It getting there!
See less See more
Looking really good, you musta slept out there for those two days!
Slept!!!!!!!!!!!!!Almost yes. Spend a couple late evenings.I'm sure glad to get some parts out of the floor. At least i have some places to step now!
That is great work :) keep the updates coming
Looks like you will be ready to fire the old gal up in a short time. Just in time for spring.
Nice job! I would have probably just looked for a replacement. How did you get the crack in there in the first place. Was that little cub pullin the big sled????

Kirk
G
Gonna be one sweet looking tractor when you get it all back together. Nice Work Sir ;)
4

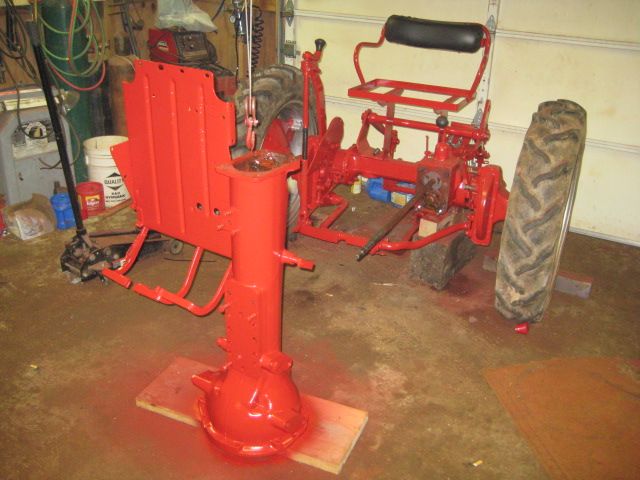

more progress today!



See less See more
Kirk-NJ said:
Nice job! I would have probably just looked for a replacement. How did you get the crack in there in the first place. Was that little cub pullin the big sled????

Kirk
I have no idea other than i'm guessing its just a stress crack! I am pretty sure the only thing this Cub has ever done is small garden work, based on who owned it.
I appreciate everyone's comments, compliments, and input!
G
Lookin Sweet. Not too far from a test drive.....
Leaving no bolt unturned, great job!
